Large Tubular Climbing Play Structure

Large Tubular Climbing Play Structure
Play Structures
P-MPPLAY11762

A large, tubular-shaped play structure designed for climbing and balancing. Made from high-quality materials, perfect for any park or playground.

Material Specification;

The supporting structure is made of thick galvanized steel pipes with a diameter of 139.7 mm thick.5 mm straight and angled

On the structure there is a rope made of reinforced ropes, braided 6-Herkules rolls, diameter 16 mm, mesh size diam. approx. 30x30cm

The ends of the ropes are wrapped in sleeves, aluminum and eyelet-shackle joints

Feet and vertical and horizontal supports at the funnel - made of a 4 "steel pipe, 114.3x8 mm.Connecting elements made of polyamide or aluminum - ball / cross and UFO

The elements connecting the rope with the frame are made of stainless steel, clamped on a press and welded

Contact Us

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form
Area Icon

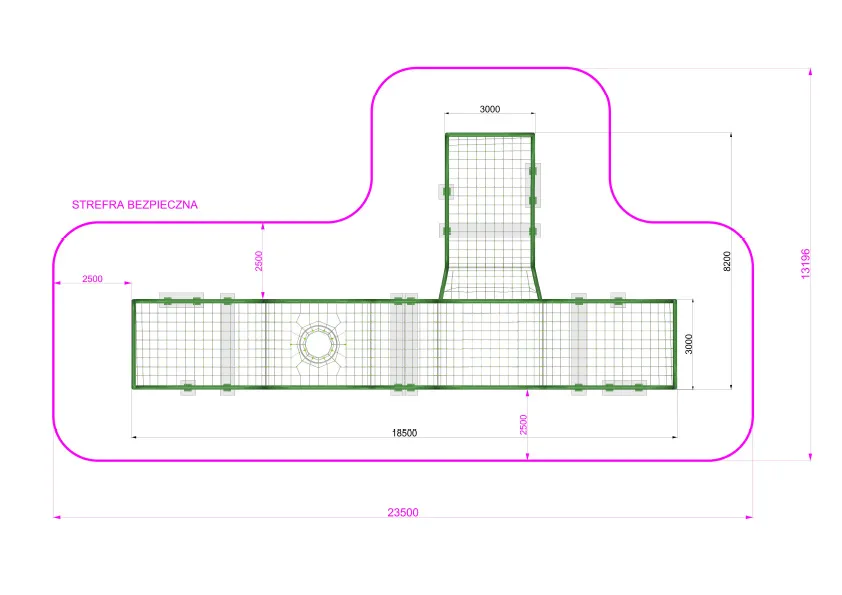

Total Space:
151.7
m2
Height Icon
Fall Height:
2.85
m
Users Icon
Users:
Age Icon
Age:
Materials:
Stainless Steel
Aluminium
